Description

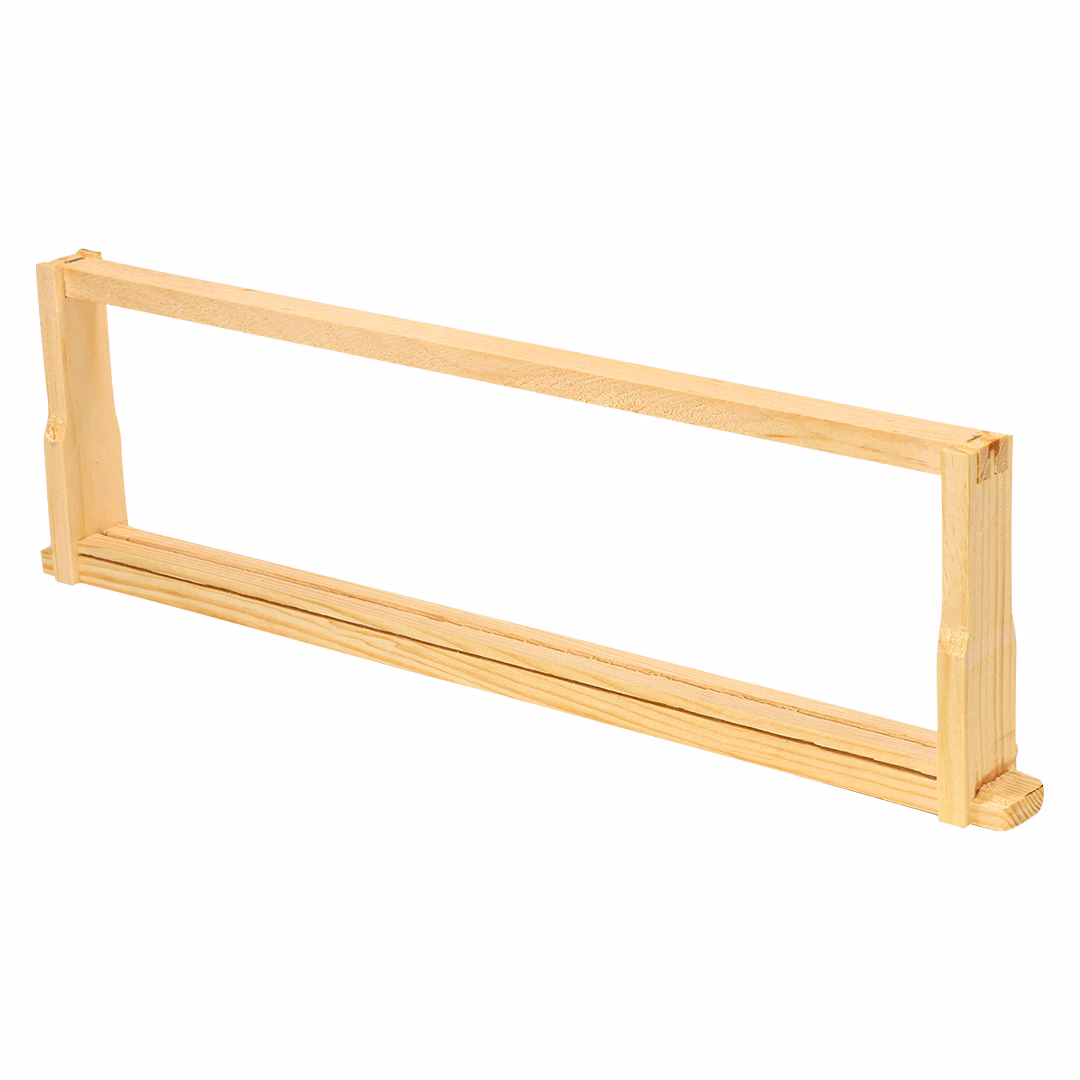

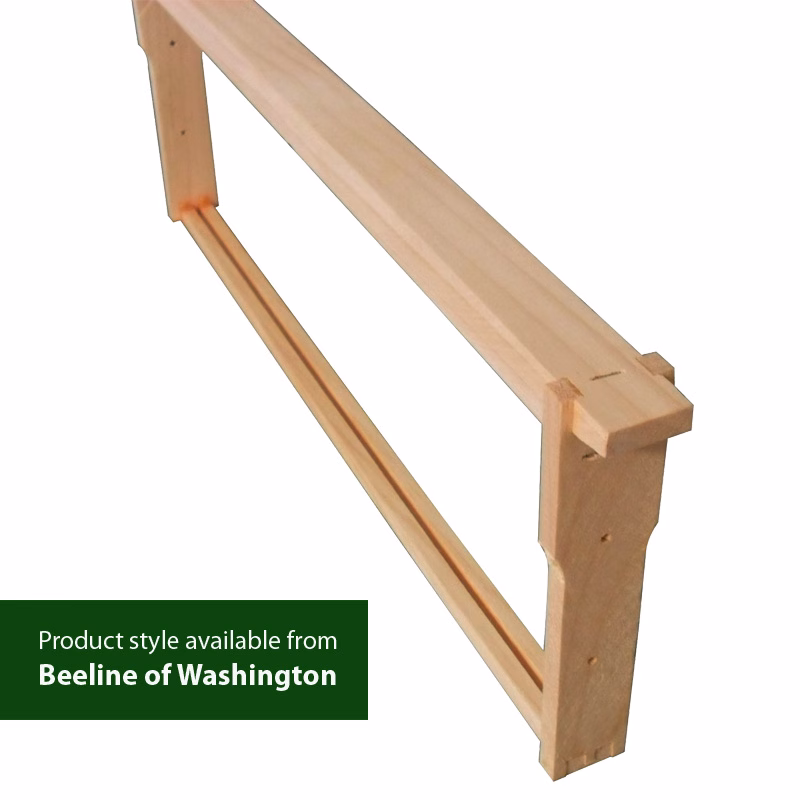

The superb frames you’ve been looking for, built tough for a rough industry! Designed and milled carefully in the USA, we strive to keep our wood grading and milling quality controlled extensively. What makes them superb?

– Sturdy 3/4″ top bar with rounded top bar ends for smooth extracting.
– 1/2″ bottom bar that mates with the center pin in the end bar for maximum gluing surface and strength.
– End bars that are a full 7/16″ thick, with long shoulders to stabilize the frame through extracting operations.
– Joints are snug and tight, but easy to fit together.
– Assembled with glue and staples on every joint, strategically placed for strength and durability…. a frame for the long haul.

Try them out! You won’t be disappointed.

What is the difference between grooved and wedged top bars, grooved or split bottom bars, holes or no holes in the end bars?

If you are using plastic foundation, purchase Item # FSAGGC. With the grooved top bar and grooved bottom bar, the plastic foundation will insert into both grooves easily.

If you are using wired wax or cutcomb foundation, these are the frames for you! They have the wedged top bars and grooved or split bottom bars, and the end bars have holes for support pins. When you insert the wax foundation, cut the wedge out of the top bar, place the foundation, and return the wedge to it’s spot, only keep it snug against the foundation. Tack it down with staples or nails. Insert support pins into the holes on the side.

Additional information
